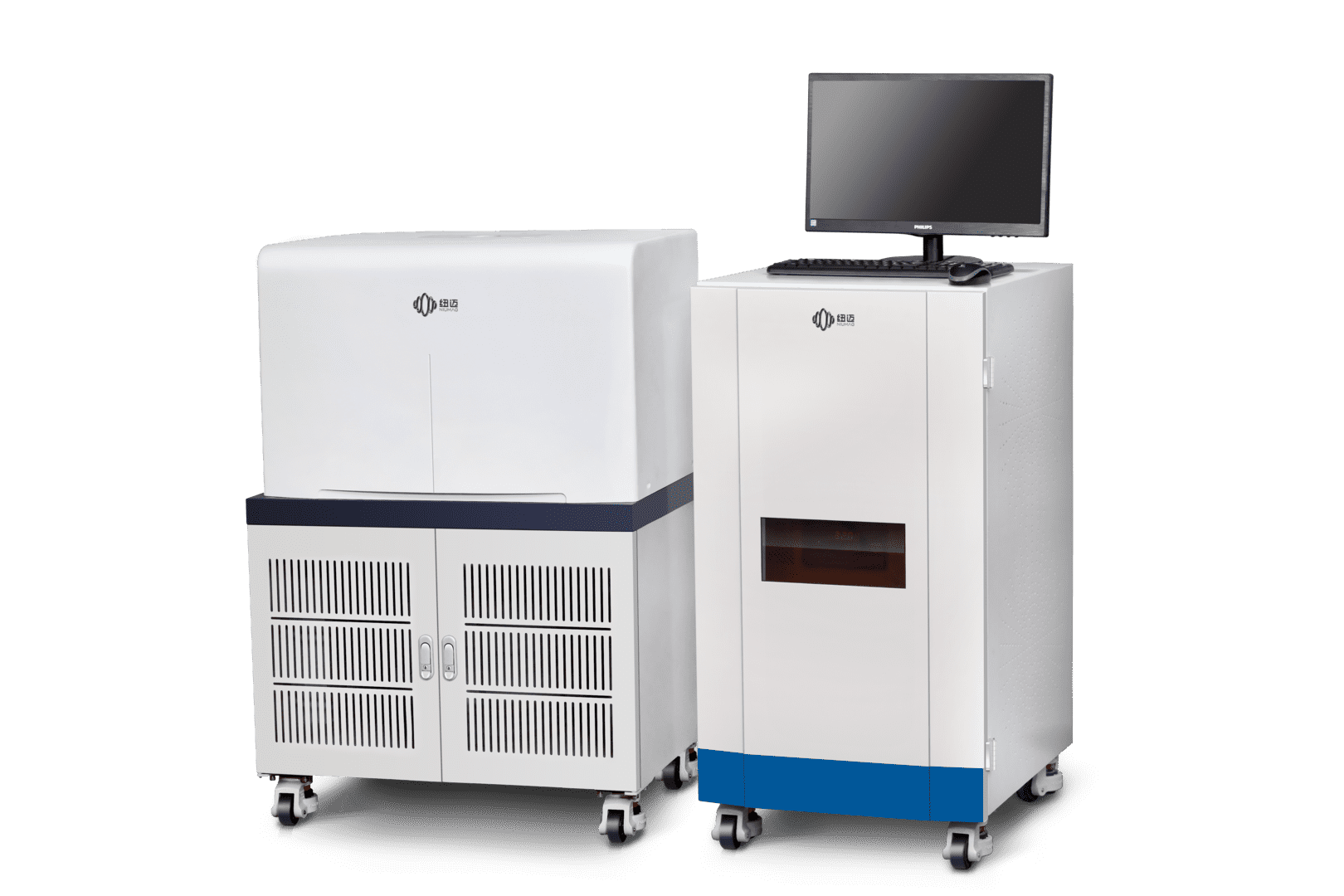

Medium-Sized NMR Imaging Analyzer NMI20-060 Series

NMI20-060H-I and NMI20-060V-I Series NMR Imaging Analyzers integrate relaxation analysis with magnetic resonance imaging to accommodate testing needs for samples of varying sizes. They have already been widely applied in food research.The NMI20 series NMR instruments are built with rare-earth permanent magnets, ensuring zero maintenance costs. No chemical pretreatment is required before testing, making the process simple and efficient. The system is particularly advantageous for qualitative and quantitative analysis of water and oil content, as well as their binding states.

Enquire Now Phone: 400-060-3233

Macro Samples

Detect samples from millimeters to decimeters

Microscopic Features

Analyze molecular-scale dynamics of the sample

Statistical Representation

Capture all hydrogen-proton signals within the region of interest

Fast & Non-Destructive

Rapid testing in seconds to minutes without damaging the sample

In-Situ & Online

Real-time monitoring via temperature and pressure control modules

Key Specifications

Model: NMI20-060H-I

NMI20-060V-I

Magnetic field strength: 0.50 ± 0.03 T

Magnet homogeneity: ≤ 20 ppm

Magnet orientation: Horizontal / Vertical

Max sample size: Ø60 mm × H60 mm

Product Highlights

Measures T₁ and T₂ relaxation times, plus spatial distribution of moisture

Oil and moisture content; oil content range: 1%–100%

Moisture content range: 2%–10%

Optional modules: temperature / humidity / microwave / vacuum-freeze blocks

Multi-field coupling capabilities

Applications

High Temperature

In-situ monitoring of moisture changes and migration during drying

In-situ tracking of water binding states and spatial distribution at different temperatures

Low Temperature

In-situ measurement of water content and spatial distribution during freezing/thawing

Assessing the impact of freeze–thaw cycles on food quality

Monitoring Moisture Dynamics in the Drying Process of Shrimp Using Low-Field NMR and MRI

Study on Moisture Distribution and Migration during the Drying Process of Tapes philippinarum

Low-Field NMR Imaging and Analytical Testing of Fresh and Salted Duck Eggs

Low-Field NMR Study on Moisture Distribution in Strawberries

Low-Field NMR Technology: Visualising Moisture Research in Food

Application Schemes of Low-Field NMR Technology in Food and Agriculture

Published Papers:

《Effect of transglutaminase concentration in curing solution on the physicochemical properties of salted large yellow croaker (Pseudosciaena crocea)》

《Low-Content Pre-Emulsified Safflower Seed Oil Enhances the Quality and Flavor of the Nemipterus Virgatus Surimi Gel》

《The relationship between rheological and textural properties of shrimp surimi adding starch and 3D printability based on principal component analysis》
